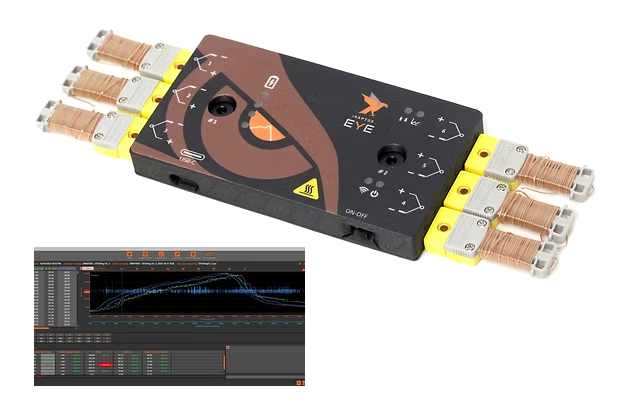

Features

Light and compact design

• 6 Function TC Channels
• USB-C Rechargeable
• Standard Accelerometer
• 2 Pyrometers
• 4 LEDs for battery indicator
• Next gen software

Functionalities

• Clear graphic display rich dataset
• Software automatically advices optimal oven recipe
• Profile fit-to-Process Window quantified.
• Heat map and vibration visualize changes over time enable easy adjustment.
• Solder Paste and component specs library eliminate repetitive data input.

The world of first 4D Thermal Profiler

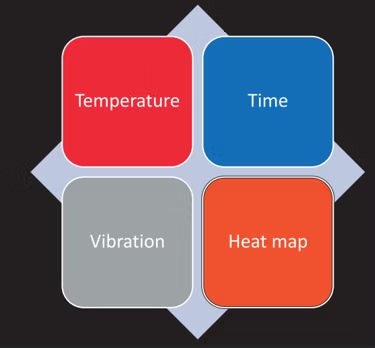

Four capabilities to develop the perfect oven process:

• Heat Map
• Vibration
• Temperature
• Time

Specifications

• Internal Operating Temperature: 0-75c.
• Accuracy: +/- 0.5c
• Resolution: 0.1c
• Sample Rate: 0.1 to 50 readings per second
• Temperature Range: -250c to 1200c
• Wi-fi 2.4 GHZ
• K-type thermocouple compatibility.
• XYZ Accelerometer
• 4x LEDs for battery Level
• 4x LEDs for Unit Status
• Dimensions (LXWXH mm):
• Profiler:120 x65.5 x 14.5
• Stainless Steel Shield:281x78x24
• With insulation:281x80.5x27.5
• Power Internal 2x batteries
• AAA Ni-MH rechargeable through USB-C

Eye Profiler Kit Contents

• 6 TC Channel Profiler
• USB Wi-fi dock station

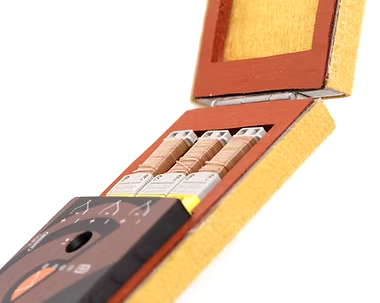

• Thermal Shield

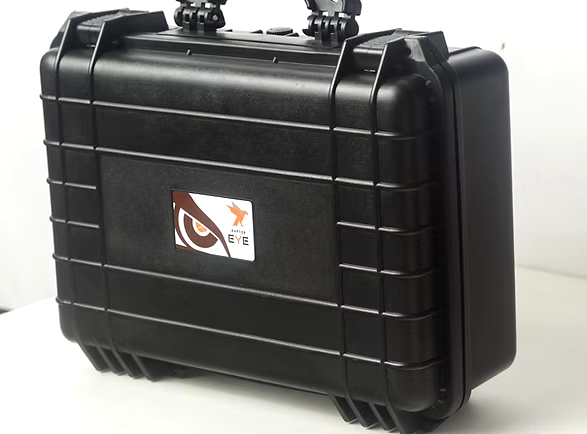

• Carrying Case

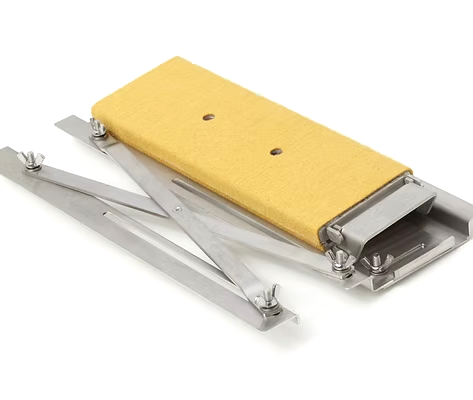

• Profiler Carrier
• USB-C to USB cable
• USB cable profiling protective
• Gloves
• 6 Thermocouple type K
• Scissors
• 6x aluminum tape strips
• Quick Reference Manual
• 2 Year Warranty
